Stunning Remodelled Pool

with Automatic Safety Cover

The project

This project involved upgrading an existing fiberglass swimming pool with an automatic safety cover and full glass mosaic tile interior. Our clients wanted to enhance the safety and aesthetics of their pool. A key requirement was to make the pool safe with an automatic cover. They also needed to upgrade the existing fiberglass coated interior to a full glass mosaic tiled interior, while retaining the kidney shaped pool design.

To meet their needs, we implemented a comprehensive solution. Our proprietary “Beaching” system was used to allow the automatic pool cover to be stored in the ground within a chamber and run under coping tracks. By creating a beach entry area around the irregular kidney shaped pool, it enabled the cover to operate smoothly on the water’s surface.

The old fiberglass interior was removed and replaced with stunning Ibiza 23.5mm iridescent glass mosaics. Sky blue tiles were used to provide an elegant finish for the waterline tile band and step edges. Existing skimmer and light components were re-routed to accommodate the new interior layout, achieved by supplying a new surface water skimmer to the extended pool side.

The automatic cover installed is a hydraulically fed Certikin Coverstar model operated from the pool filter room. We are one of the very few companies with specialised expertise to perform this type of reshaping work to seamlessly integrate new automatic safety covers to existing swimming pools.

The project was a resounding success. The clients are absolutely delighted with the outcome – a beautifully remodelled pool featuring a striking glass mosaic tiled interior and the added safety of an automatic cover system.

UK Swimming Pools Project - Stunning Remodelled Swimming Pool with Automatic Safety Cover
  • All
  • before
  • Finished
  • During

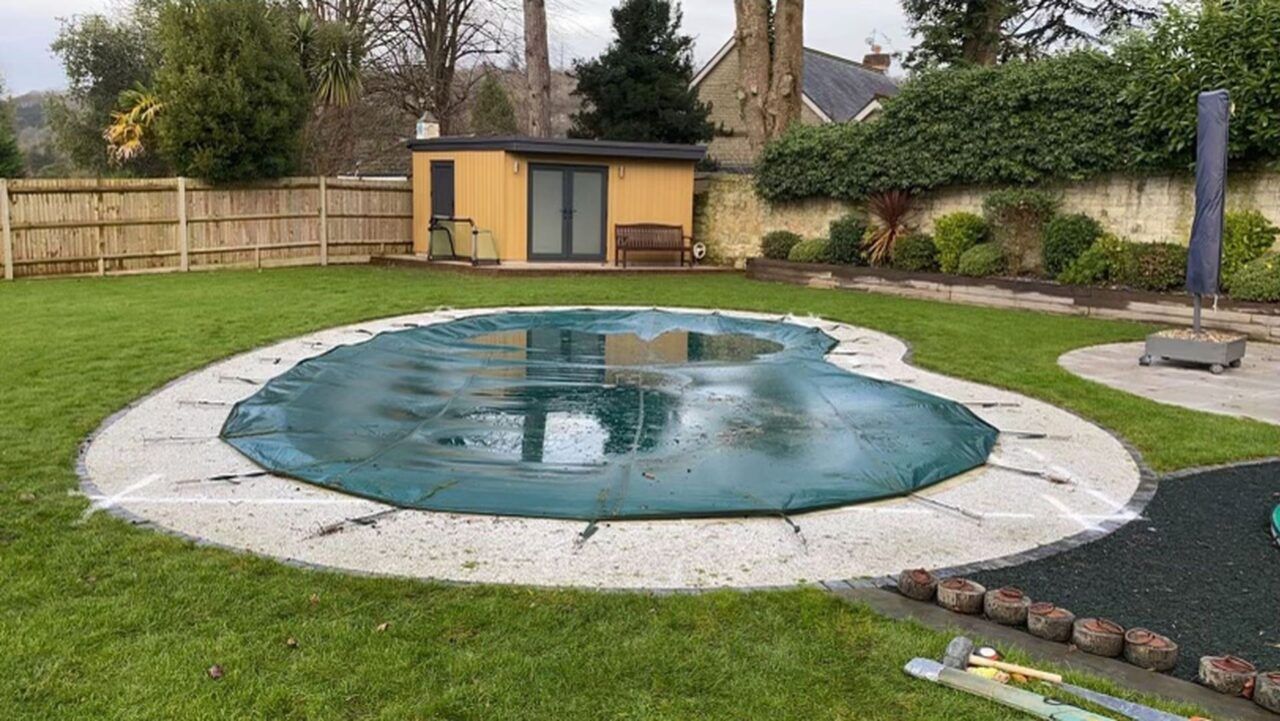

A manual pool cover over the original swimming pool
The original swimming pool before the upgrades including an automatic safety cover and full glass mosaic tile interior

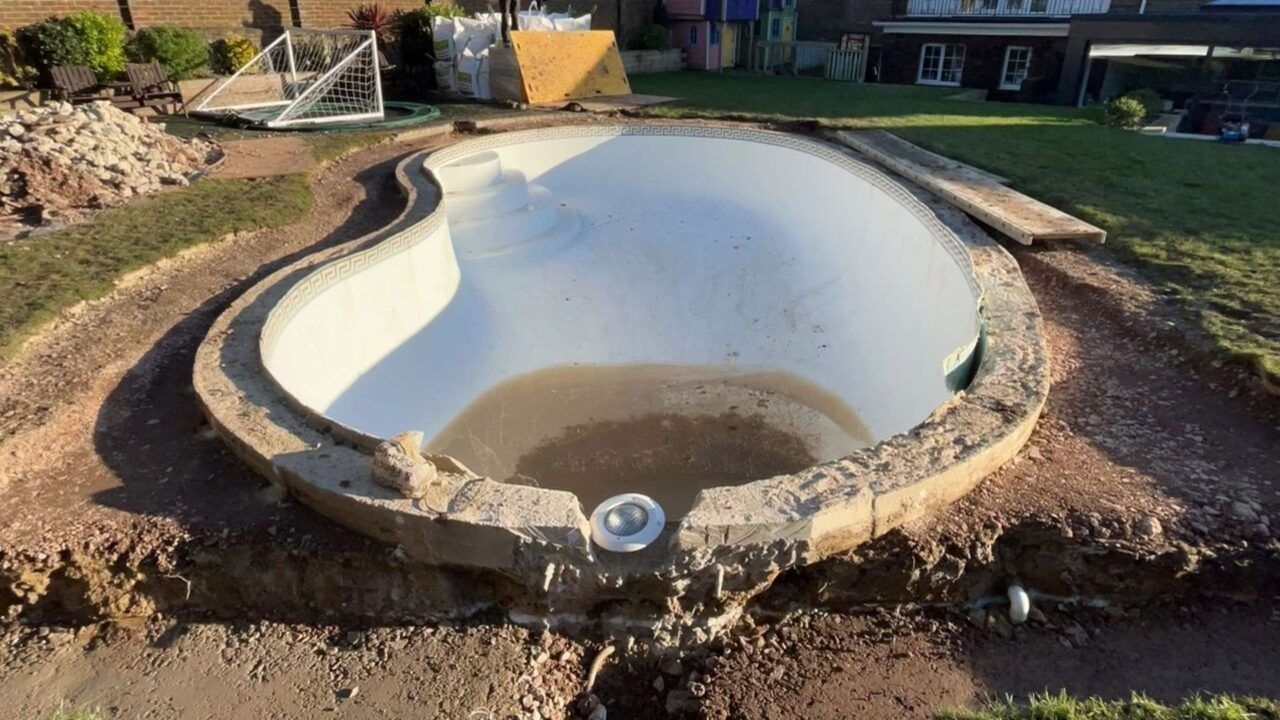

The old pool has been emptied and cleaned before retiling
Drawing of the new pool shape over the existing kidney shaped swimming pool
The Fiberglass interior was removed as well as the pavement around the swimming pool
A proprietary “Beaching” system was used to allow the automatic pool cover to be stored in the ground
a different angle of the cutout for the storage location for the new automatic pool cover
Existing skimmer and light components were re-routed to accommodate the new interior layout,
Close-up of a light component on the edge of the swimming pool
Existing skimmer and light components were re-routed to accommodate the new interior layout,
Metal wireframe being installed to strengthen the edge of the swimming pool
Rubble from the old mosaic tiling in the middle of the kidney shaped swimming pool
Cement blocks being installed with the wireframe to strengthen the edge of the swimming pool
The rubble has been removed from the old swimming pool and the surface has been cleaned for the refurbishment
The storage place for the automatic pool cover is nearly finished
The new swimming pool shape is getting ready
The old tiles have been mostly removed and the new pool edge has been finished
All the old tiles have been removed from the pool
The new strengthened edges are filled up and the project is ready for the next step
wide angle view of the refurbishment. The new edge for the pool is getting ready
The new strengthened edges are filled up and the project is ready for the next step
The new strengthened edges are filled up and the project is ready for the next step
The pool gets a new layer of concrete for easy installation of the Ibiza iridescent glass mosaics
Wooden beam being fixed at the short edge of the swimming pool.
wide angle view of the refurbishment. The new edge for the pool is getting ready
A new surface water skimmer installed to the extended pool side
The new pool edges are drying and the inside of the pool is getting ready for tiling
Angle view of the swimming pool steps before the new tiles installed
View of the side of the swimming pool showing the Ibiza iridescent glass mosaics and the sky blue tiles for the waterline
Preparation for the installation of the new stunning Ibiza 23.5mm iridescent glass mosaics
The new stunning Ibiza 23.5mm iridescent glass mosaics have been installed on
Sky blue tiles were used to provide an elegant finish
Ibiza 23.5mm iridescent glass mosaics
The sides and pool are protected from debris and sun while drying
Retiling of the swimming pool steps - The sides and pool are protected from debris and sun while drying
Close-up of the steps before the installation of the Ibiza 23.5mm iridescent glass mosaics
The steps before the installation of the Ibiza 23.5mm iridescent glass mosaics
Close-up of the steps with the Ibiza 23.5mm iridescent glass mosaics and the sky blue tiles for the waterline
A full view of the new swimming pool. The sides are finished, installation of the Ibiza 23.5mm iridescent glass mosaics on the bottom of the pool is in progress
The UK Swimming Pool Team installing the Ibiza 23.5mm iridescent glass mosaics
Finished shot of the installation of the Ibiza iridescent glass mosaics
Pavings are being installed around the pool
Close-up of the pavement tiling plan around the swimming pool

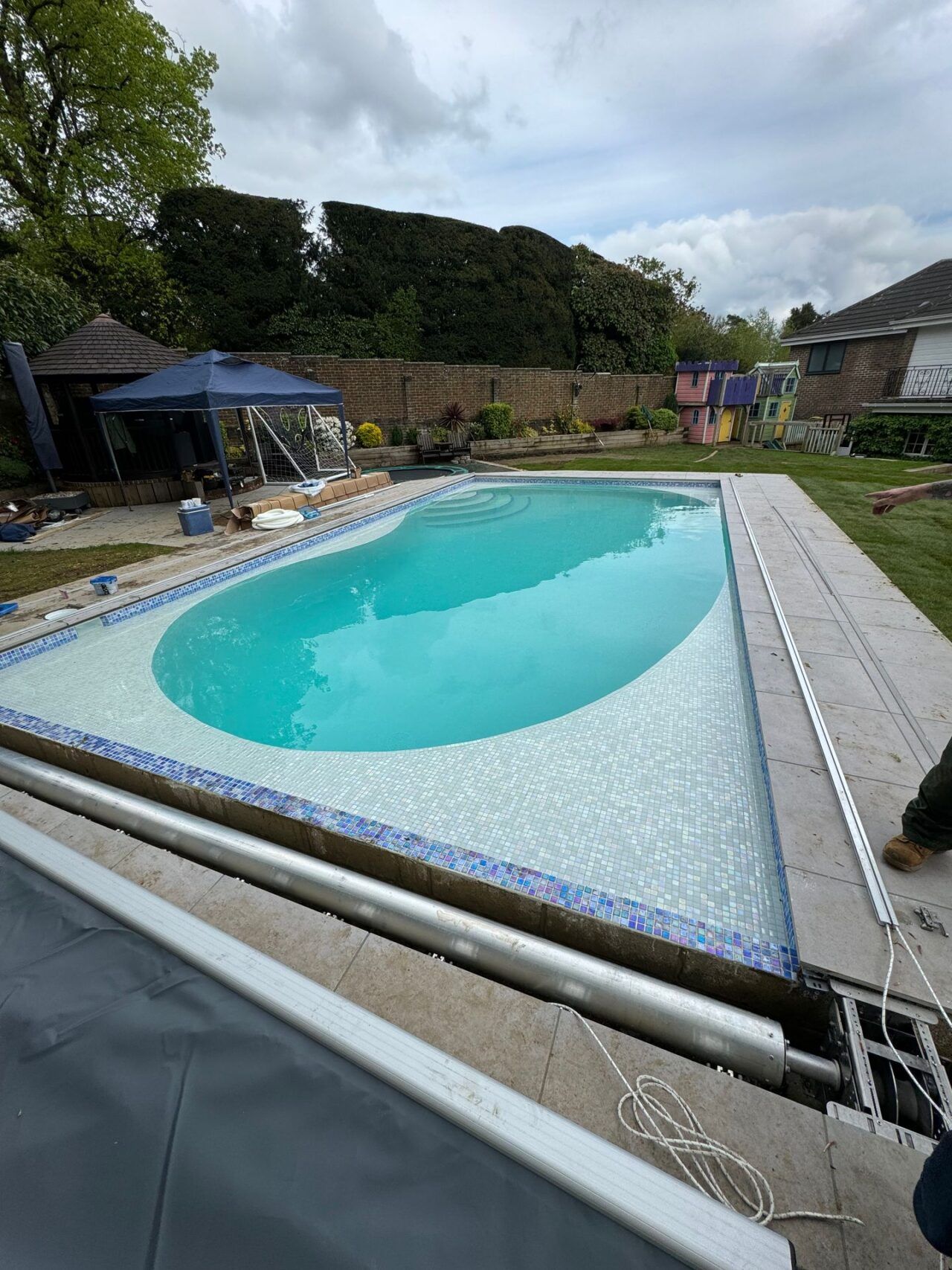

The automatic swimming pool cover system before covered
Pavings are being installed around the pool and over the automatic swimming pool cover
Finished shot of the remodelled of the swimming pool without the automatic pool cover
Finished shot of the remodelled of the swimming pool with pool house in the background
Finished shot of the remodelled of the swimming pool with cover
